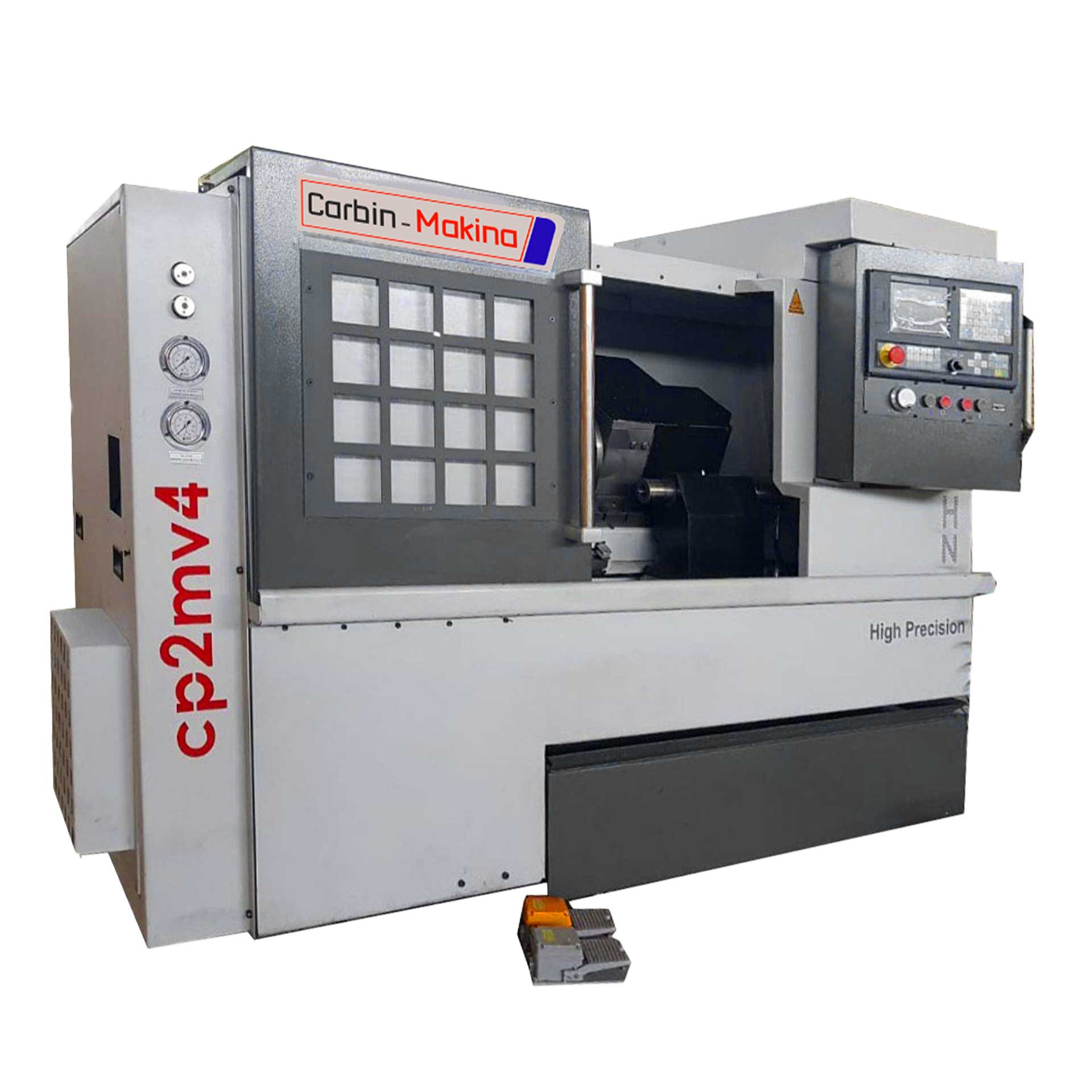

Product Details
Diagonal rail
Three hydraulic systems Ф160
Throat Ф42
Servo-hydraulic turret
Hydraulic bird
Lathe dimensions Ф160×350
| Item | Unit | Cp2MV4 | |
| Control | Control type | SZGH-2 | |
| Number of axes | 2-axis | ||
| Capacity | Max turning swing | mm | 400 |
| Max turning dia over slide | mm | 250 | |
| Max turning dia | mm | 160 | |
| Max turning length | mm | 350 | |
| Standard Chuck Size | “(inch) | 6 | |
| Max. Turning bar diameter | mm | 42 | |
| Spindle | Spindle mount | A2-5 | |
| Spindle speed | Ac-motor | 100-2200 | |
| Spindle speed | Servo | 50-3000 | |
| Power of spindle | kw | 5.5 7.5 |
|
| Travel | X-axis travel | mm | 140 |
| Z-axis travel | mm | 400 | |
| X/Z-axis motor | kw | 1 | |
| X/Z-axis rapid travel speed | m/min | 15 | |
| X-guidway type | mm | 30 | |
| Z-guidway type | mm | 35 | |
| Ball screw | mm | 32 | |
| China Taiwan |
|||
| Tailstock | Quill dia. Of tailstock | mm | 60 |
| Quill stroke of tailstock | mm | 70 | |
| Quill taper of tailstock | MT#4 | ||
| Turret | Number of tool stations | Nu. | 8 12 |
| Type | Servo hydro | ||
| Size of turning tool holder | mm | 20*20 | |
| Size of internal turning tool holder | mm | 20 | |
| Power of servo | kw | 1 | |
| Coolant | Coolant capacity | Liter | 100 |
| Cutting coolant pump | HP | 0.5 | |
| Lubrcation tank capacity | Liter | 1.5 | |
| Machine dimension (W*L*H) | m | 1.4*2.*1.7 | |
| Machine weight | kg | 2200 | |
